VQJHVD0150 ENDMILL
Item #: MB0310583371
Brand: Mitsubishi Materials USA
Model #: 10583371

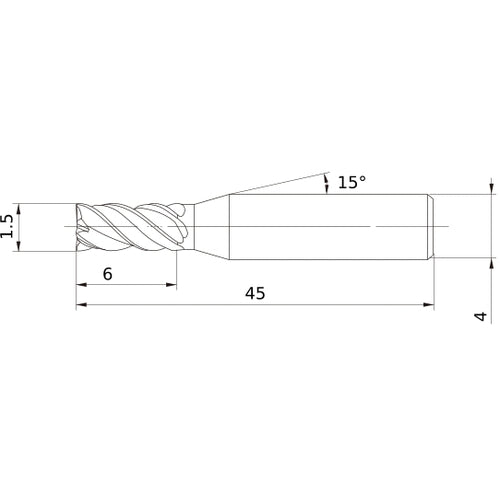

| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1.5 mm |
| Body Half Taper Angle (BHTA) | 15 Degrees |
| Connection Diameter Machine Side (DCONMS) | 4 mm |
| Peripheral Effective Cutting Edge Count (ZEFP) | 4 |
| Depth of Cut Maximum (APMX) | 6 mm |
| Length Group | Semi Long |
| Overall Length (OAL) | 45 mm |
| Measurement Type | Metric |
| Coating | VQ |
| Series/List # | VQJHV |
| End Shape | Center Cutting |
