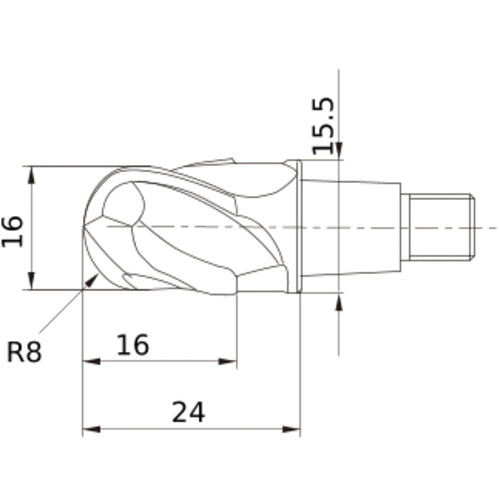

IMX16B2S16016
Item #: MB0310583326
Brand: Mitsubishi Materials USA
Model #: 10583326
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 16 mm |
| Flute Helix Angle (FHA) | 30 Degrees |
| Applicable Material | Hard Materials |
| Grade | EP8110 |
| Flute Count (NOF) | 2 |
| Measurement Type | Metric |
| Corner Radius (RE) | 8 mm |
| Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 16 mm |
| Series/List # | iMX_B2S |
| Connection Diameter Machine Side (DCONMS) | 15.5 mm |
| End Shape | Ball Nose |
| Functional Length (LF) | 24 mm |
