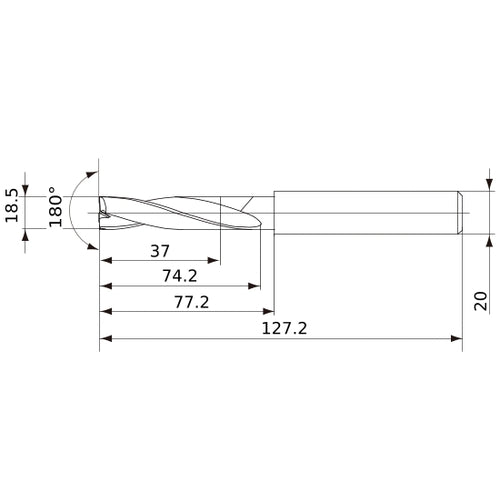

MFE1850X02S200 DP1020 18.5 mm Dia. × 20 mm Shank × 74 mm Flute Length × 127 mm OAL, 180°, 2 Flute, External Coolant, Solid Carbide Drill
Item #: MB0310565575
Brand: Mitsubishi Materials USA
Model #: 10565575
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 18.5 mm |
| Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 18.5 mm |
| Grade | DP1020 |
| Length Group | 2xD |
| Measurement Type | Metric |
| Applicable Material | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials |
| Series/List # | MFE |
| Connection Diameter Machine Side (DCONMS) | 20 mm |
| Usable Length (LU) | 37 mm |
| Head Length (LH) | 77 mm |
| Length Chip Flute (LCF) | 74 mm |
| Coolant Supply Property (CSP) | External |
| Overall Length (OAL) | 127 mm |
| Point Angle (SIG) | 180 Degrees |
| Flute Count (NOF) | 2 |
| Flute Helix Angle (FHA) | 20 Degrees |
| Feature | High efficiency drilling in various types of machining. |
