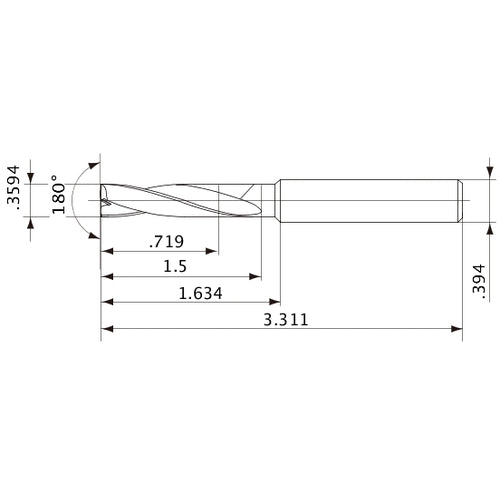

MFE0913X02S100 DP1020 0.3594″ Dia. × 0.394″ Shank × 1-1/2″ Flute Length × 3.311″ OAL, 180°, 2 Flute, External Coolant, Solid Carbide Drill
Item #: MB0310562635
Brand: Mitsubishi Materials USA
Model #: 10562635
Product Specifications | |
---|---|
Drill Bit Size / Cutting Diameter (DC) | 0.3594″ |
Cutting Edge Material | Carbide |
Drill Bit Size / Cutting Diameter (DC) - Inch | 0.3594″ |
Grade | DP1020 |
Length Group | 2xD |
Measurement Type | Inch |
Applicable Material | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials |
Series/List # | MFE_INCH |
Connection Diameter Machine Side (DCONMS) | 0.394″ |
Usable Length (LU) | 0.719″ |
Head Length (LH) | 1.634″ |
Length Chip Flute (LCF) | 1-1/2″ |
Coolant Supply Property (CSP) | External |
Overall Length (OAL) | 3.311″ |
Point Angle (SIG) | 180 Degrees |
Flute Count (NOF) | 2 |
Flute Helix Angle (FHA) | 20 Degrees |
Feature | High efficiency drilling in various types of machining. |
