AHX440SR10007DA MILL
Item #: MB0310536971
Brand: Mitsubishi Materials USA
Model #: 10536971

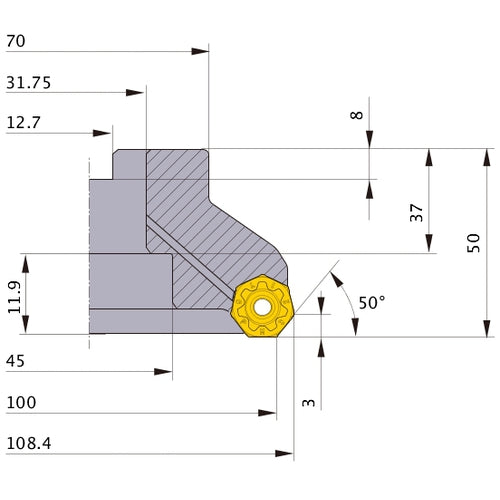

| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 100 mm |
| Cutting Direction (HAND) | Right Hand |
| Cutting Diameter (DC) | 100 mm |
| Measurement Type | Metric |
| Cutting Diameter Maximum (DCX) | 108.4 mm |
| Functional Length (LF) | 50 mm |
| Depth of Cut Maximum (APMX) | 3 mm |
| Tool Cutting Edge Angle (KAPR) | 50 Degrees |
| Connection Diameter Machine Side (DCONMS) | 31.75 mm |
| Series/List # | AHX440S |
