AJXU09R223AM1645 INDEXABLE END MILL
Item #: MB0310533048
Brand: Mitsubishi Materials USA
Model #: 10533048

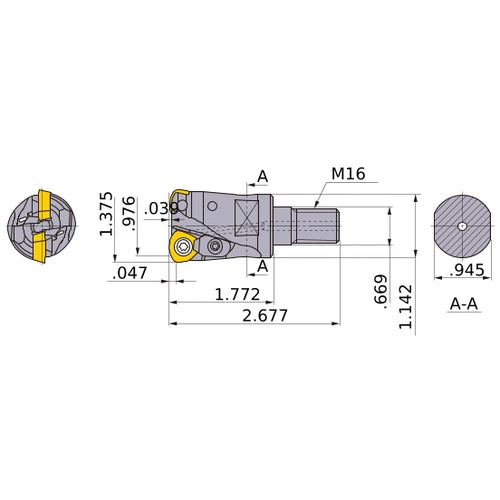

| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 0.976″ |
| Functional Length (LF) | 1.772″ |
| Cutting Diameter (DC) | 0.976″ |
| Flute Count (NOF) | 3 |
| Cutting Diameter Maximum (DCX) | 1-3/8″ |
| Body Diameter (BD) | 1.142″ |
| Cutting Item Count (CICT) | 3 |
| Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.047″ |
| Series/List # | AJX_INCH |
| Overall Length (OAL) | 2.677″ |
| Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 0.669″ |
| Connection Retention Knob Thread Size (CRKS) | M16 |
