IMX12CH6V0500A45 EP7020 SOLID EM
Item #: MB0310528181
Brand: Mitsubishi Materials USA
Model #: 10528181

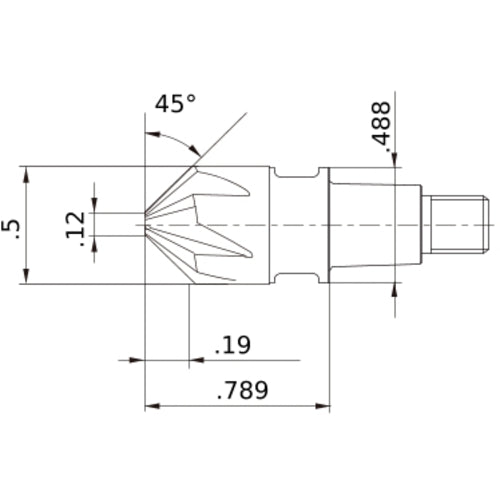

| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1/2″ |
| Head Length (LH) | 0.789″ |
| Connection Diameter Machine Side (DCONMS) | 0.488″ |
| Peripheral Effective Cutting Edge Count (ZEFP) | 6 |
| Depth of Cut Maximum (APMX) | 0.19″ |
| Decimal Equivalent | 0.5″ |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
| End Shape | Chamfer |
| Series/List # | iMX_CH6V_INCH |
| Applicable Material | Steel | Stainless Steel | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials |
| Tool Cutting Edge Angle (KAPR) | 45 Degrees |
| Grade | EP7020 |
