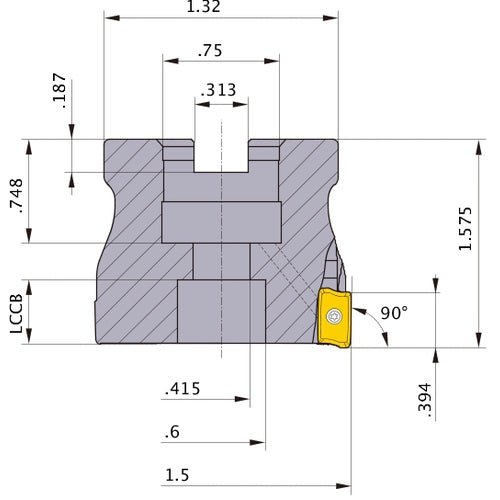

APX3000R1504A FACE MILL
Item #: MB0310527641
Brand: Mitsubishi Materials USA
Model #: 10527641
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 1-1/2″ |
| Cutting Direction (HAND) | Right Hand |
| Cutting Diameter (DC) | 1-1/2″ |
| Measurement Type | Inch |
| Depth of Cut Maximum (APMX) | 0.394″ |
| Functional Length (LF) | 1.575″ |
| Connection Diameter Machine Side (DCONMS) | 3/4″ |
| Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Ramping Angle Maximum (RMPX) | 2.4 Degrees |
| Series/List # | APX3000-A_INCH |
