IMX25C3A250R10020 ET2020 CARB EM
Item #: MB0310510285
Brand: Mitsubishi Materials USA
Model #: 10510285

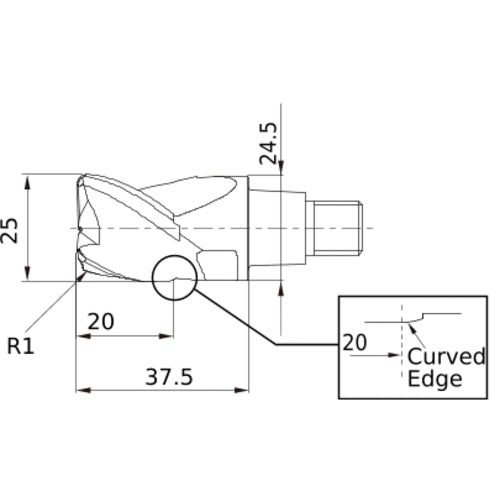

| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 25 mm |
| Corner Radius (RE) | 1 mm |
| Connection Diameter Machine Side (DCONMS) | 24.5 mm |
| Grade | ET2020 |
| Depth of Cut Maximum (APMX) | 20 mm |
| Head Length (LH) | 37.5 mm |
| Cutting Edge Material | Carbide |
| Peripheral Effective Cutting Edge Count (ZEFP) | 3 |
| Flute Helix Angle (FHA) | 37.5 Degrees |
| Measurement Type | Metric |
| End Shape | Corner Radius |
| Series/List # | iMX_C3A |
| Applicable Material | Aluminum / Non-Ferrous Materials |
