S-MSKNR-284 BORING BAR
Item #: MB03104383
Brand: Mitsubishi Materials USA
Model #: 104383

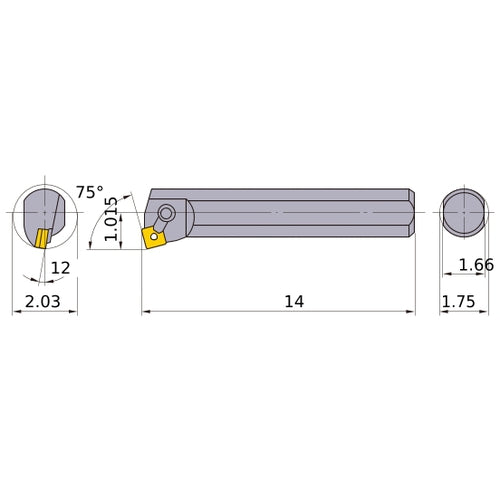

| Product Specifications | |
|---|---|
| Connection Diameter Machine Side (DCONMS) | 1-3/4″ |
| Cutting Direction (HAND) | Right Hand |
| Functional Length (LF) | 14″ |
| Frontal Edge Angle | 75 Degrees |
| Shank Height (H) | 1.66″ |
| Rake Angle Radial (GAMF) | 12 Degrees |
| Functional Width (WF) | 1.015″ |
| Series/List # | S-MSKN_INCH |
| Minimum Bore Diameter (DMIN) | 2.03″ |
| Measurement Type | Inch |
