FSWL108RS BAR
Item #: MB03102229
Brand: Mitsubishi Materials USA
Model #: 102229

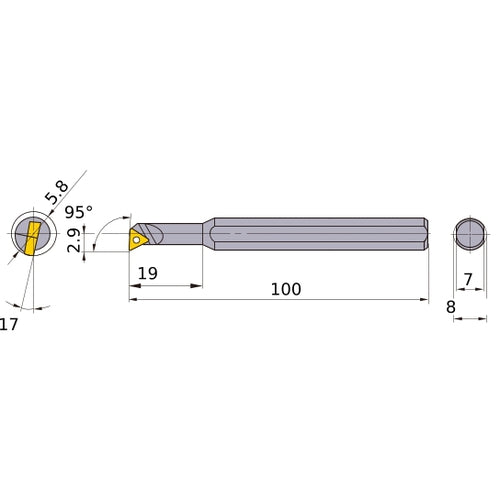

| Product Specifications | |
|---|---|
| Connection Diameter Machine Side (DCONMS) | 8 mm |
| Cutting Direction (HAND) | Right Hand |
| Functional Length (LF) | 100 mm |
| Frontal Edge Angle | 95 Degrees |
| Head Length (LH) | 19 mm |
| Rake Angle Radial (GAMF) | 17 Degrees |
| Shank Height (H) | 7 mm |
| Series/List # | FSWL1 |
| Functional Width (WF) | 2.9 mm |
| Measurement Type | Metric |
| Minimum Bore Diameter (DMIN) | 5.8 mm |
