AOMT184808PEER-H MP9130 INSERT
Item #: MB02801771
Brand: Mitsubishi Materials USA
Model #: 801771

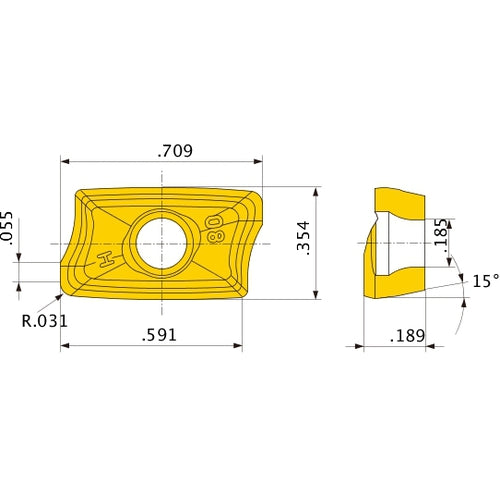

| Product Specifications | |
|---|---|
| Applicable Material | Super-Alloys / Titanium |
| Clearance Angle Major (AN) | 15 Degrees |
| Cutting Edge Length (L) | 18 mm |
| Series/List # | MP9130 |
| Corner Radius (RE) | 0.8 mm |
| Hole Diameter | 4.7 mm |
| Insert Width (W1) | 9 mm |
| Cutting Edge Material | Carbide |
| Insert Thickness (S) | 4.8 mm |
| Tool Type | rotating_inserts |
| Wiper Edge Length (BS) | 1.4 mm |
| Cutting Edge Effective Length (LE) | 15 mm |
| Grade | MP9130 |
| Measurement Type | Metric |
| Insert Style | AOMT |
