AOMT123632PEER-M MP7130 INSERT
Item #: MB02800808
Brand: Mitsubishi Materials USA
Model #: 800808

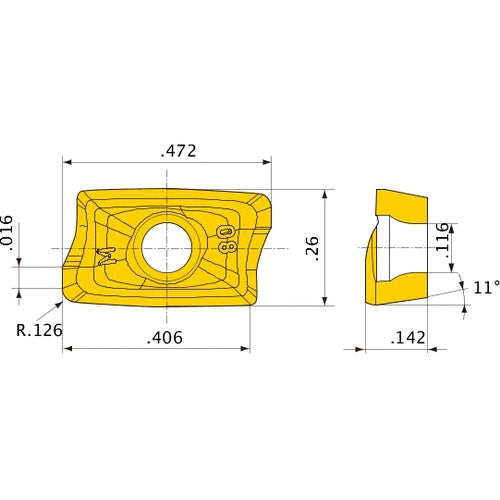

| Product Specifications | |
|---|---|
| Applicable Material | Stainless Steel |
| Clearance Angle Major (AN) | 11 Degrees |
| Cutting Edge Length (L) | 12 mm |
| Series/List # | MP7130 |
| Corner Radius (RE) | 3.2 mm |
| Hole Diameter | 2.95 mm |
| Insert Width (W1) | 6.6 mm |
| Cutting Edge Material | Carbide |
| Insert Thickness (S) | 3.6 mm |
| Tool Type | rotating_inserts |
| Wiper Edge Length (BS) | 0.4 mm |
| Cutting Edge Effective Length (LE) | 10.3 mm |
| Grade | MP7130 |
| Measurement Type | Metric |
| Insert Style | AOMT |
