MGTR43430 UTI20T INSERT
Item #: MB02396076
Brand: Mitsubishi Materials USA
Model #: 396076

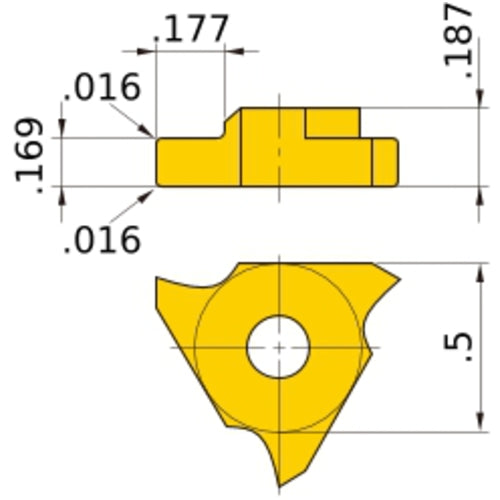

| Product Specifications | |
|---|---|
| Cutting Width (CW) | 4.3 mm |
| Grade | UTi20T |
| Corner Radius (RE) | 0.4 mm |
| Cutting Edge Material | Carbide |
| Cutting Depth Maximum (CDX) | 4.5 mm |
| Applicable Material | Steel | Stainless Steel | Cast Iron |
| Insert Thickness (S) | 4.76 mm |
| Cutting Direction (HAND) | Right Hand |
| Inscribed Circle Diameter (IC) | 12.7 mm |
| Series/List # | UTi20T |
| Fixing Hole Diameter (D1) | 5.16 mm |
| Measurement Type | Metric |
