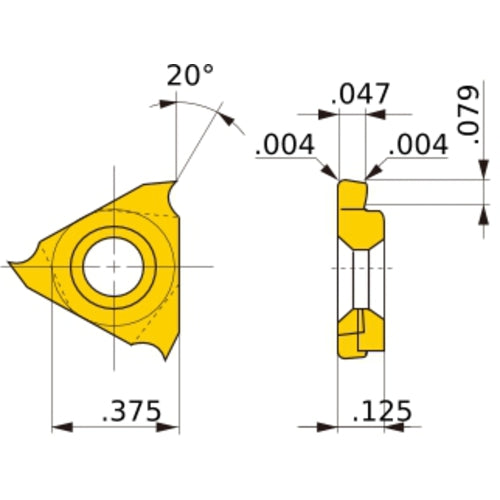

GTAT1202001R-E VP15TF GROOVING INS
Item #: MB02269448
Brand: Mitsubishi Materials USA
Model #: 269448
| Product Specifications | |
|---|---|
| Cutting Width (CW) | 1.2 mm |
| Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.1 mm |
| Applicable Material | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium |
| Cutting Depth Maximum (CDX) | 2 mm |
| Cutting Direction (HAND) | Right Hand |
| Insert Thickness (S) | 3.18 mm |
| Chip Breaker Type | E |
| Inscribed Circle Diameter (IC) | 9.525 mm |
| Series/List # | VP15TF |
| Insert Rake Angle (GAN) | 20 Degrees |
| Measurement Type | Metric |
| Grade | VP15TF |
