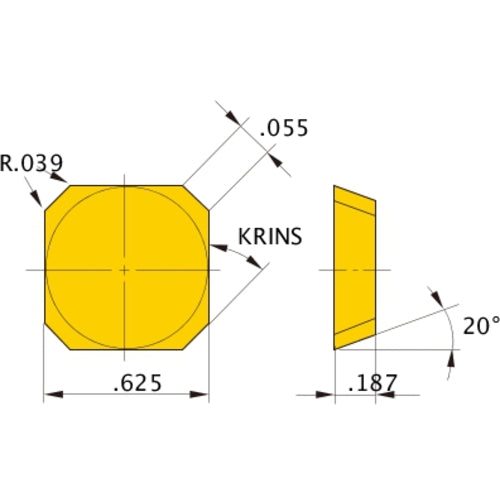

SEEN53AFTN1 NX4545 INSERT
Item #: MB02168807
Brand: Mitsubishi Materials USA
Model #: 168807
| Product Specifications | |
|---|---|
| Applicable Material | Steel | Stainless Steel |
| Insert Style | SEEN |
| Corner Radius (RE) | 1 mm |
| Clearance Angle Major (AN) | 20 Degrees |
| Inscribed Circle Diameter (IC) | 15.875 mm |
| Series/List # | NX4545 |
| Insert Thickness (S) | 4.76 mm |
| Cutting Edge Material | Cermet |
| Wiper Edge Length (BS) | 1.4 mm |
| Tool Type | rotating_inserts |
| Grade | NX4545 |
| Measurement Type | Metric |
