ZCMX09T308ERA UP20M INSERT
Item #: MB02109256
Brand: Mitsubishi Materials USA
Model #: 109256

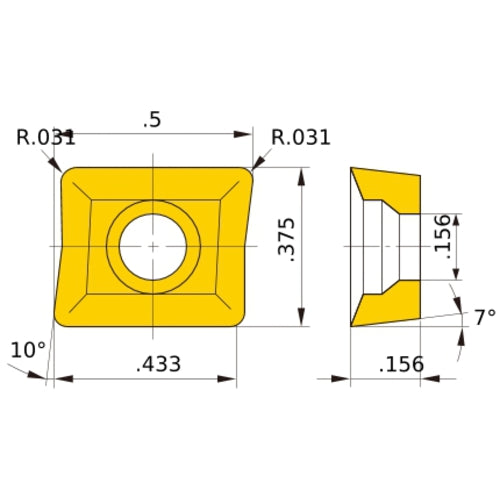

| Product Specifications | |
|---|---|
| Applicable Material | Steel | Stainless Steel |
| Clearance Angle Major (AN) | 7 Degrees |
| Cutting Edge Length (L) | 12.7 mm |
| Series/List # | UP20M |
| Corner Radius (RE) | 0.8 mm |
| Hole Diameter | 3.95 mm |
| Insert Width (W1) | 9.525 mm |
| Cutting Edge Material | Carbide |
| Insert Thickness (S) | 3.97 mm |
| Tool Type | rotating_inserts |
| Grade | UP20M |
| Cutting Edge Effective Length (LE) | 11 mm |
| Insert Style | ZCMX |
| Measurement Type | Metric |
