MVE1740X03S180 DP1020
Item #: MB01696386
Brand: Mitsubishi Materials USA
Model #: 696386

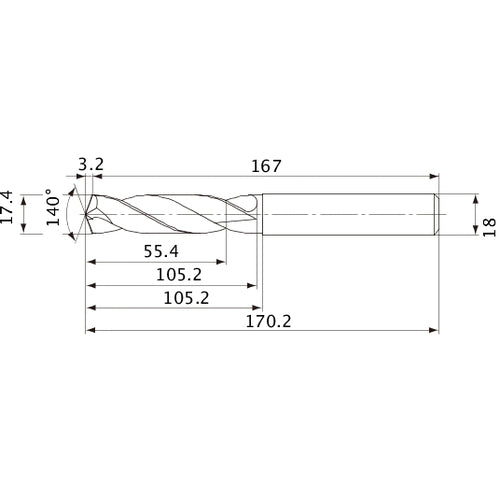

| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 17.4 mm |
| Flute Helix Angle (FHA) | 30 Degrees |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 17.4 mm |
| Cutting Edge Material | Carbide |
| Length Group | 3xD |
| Grade | DP1020 |
| Applicable Material | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials |
| Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 18 mm |
| Series/List # | MVE |
| Head Length (LH) | 105.2 mm |
| Usable Length (LU) | 55.4 mm |
| Coolant Supply Property (CSP) | External |
| Length Chip Flute (LCF) | 105.2 mm |
| Point Angle (SIG) | 140 Degrees |
| Overall Length (OAL) | 170.2 mm |
| Point Length (PL) | 3.2 mm |
| Flute Count (NOF) | 2 |
| Functional Length (LF) | 167 mm |
