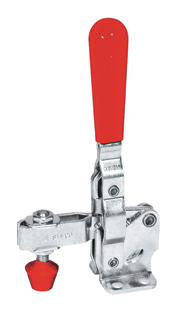

#267-U Vertical Hold Down U-Shape Style; 1;200 lbs Holding Capacity - Toggle Clamp

Item #: MA50267U
Manufacturer: De-Sta-Co
Mfg #: 267-U

Technical Specifications:
*Accessories: 267203-M M16 x 5.12 *Bar Style: U-Shape *Base Type: Flanged *Base Width: 3.75 *Brand Name: De-Sta-Co *Degree Bar Opens: 140¡ *Distance From Base to Clamp Bar: 5.87 *Height Under Clamp Arm: 3.08 *Holding Capacity: 1200 lbs *Mount Diameter: .48 *Mounting Length: 2.00 *Mounting Width: 2.75 *Overall Height: 11.97 *Overall Length: 8.87 *Spindle Assembly: M16 *Style: Vertical Handle Hold Down *Width Between Mounting Base: -

Description:
*Vertical Hold Down Action Clamp *Ideal for all sectors in which work is performed with holding capacities of up to 1200 lbs. *Applications include assembly, drilling, testing, gluing, and other processing operations *Oil-resistant ergo-handle for easy operations *4-Bar styles include spindle flanged-washer and nuts *Solid-bar includes bolt retainer that can be welded to bar

Shipping Info:
*Actual Weight - 4.9500 *D
