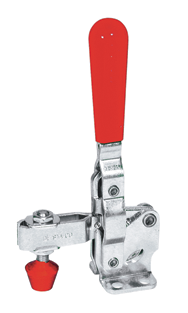

#247-S Vertical Hold Down Solid Style; 1;000 lbs Holding Capacity - Toggle Clamp

Item #: MA50247S
Manufacturer: De-Sta-Co
Mfg #: 247-S

Technical Specifications:
*Accessories: Without Spindle *Bar Style: Solid *Base Type: Flanged *Base Width: 2.53 *Brand Name: De-Sta-Co *Degree Bar Opens: 120¡ *Distance From Base to Clamp Bar: 4.87 *Height Under Clamp Arm: 1.98 *Holding Capacity: 1000 lbs *Mount Diameter: .34 *Mounting Length: 1.25 *Mounting Width: 1.78 *Overall Height: 8.86 *Overall Length: 6.87 *Spindle Assembly: M12 *Style: Vertical Handle Hold Down *Width Between Mounting Base: -

Description:
*Vertical Hold Down Action Clamp *Ideal for all sectors in which work is performed with holding capacities of up to 1200 lbs. *Applications include assembly, drilling, testing, gluing, and other processing operations *Oil-resistant ergo-handle for easy operations *4-Bar styles include spindle flanged-washer and nuts *Solid-bar includes bolt retainer that can be welded to bar

Shipping Info:
*Actual Weight - 2.4000 *Dimensions - Height: 2.56 Length: 9.00 Width: 5.50
