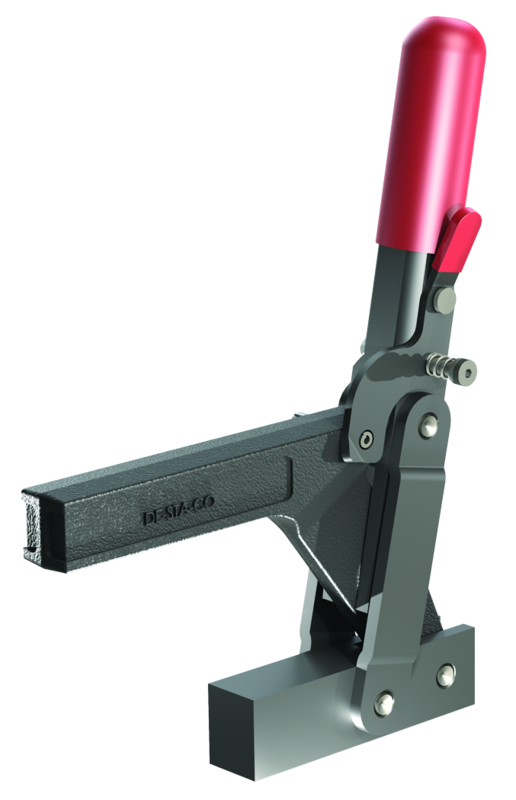

#5110B - Vertical Hold Down - Toggle Clamp

Item #: MA455110B
Manufacturer: De-Sta-Co
Mfg #: 97937

Technical Specifications:
*Bar Opening: 74 *Bar Style: Solid *Base Length: 2.50 *Base Type: Solid *Base Width: 1.26 *Brand Name: De-Sta-Co *Clamp Arm Length: 3.83 *Degree of Handle Movement: 138 *Degree Bar Opens: 74 *Distance From Base to Clamp Bar: 3.05 *Distance From Surface to Clamp Point: 3.05 *Height Under Clamp Arm: 3.05 *Holding Capacity: 1150 *Model No.: 5110B *Overall Height: 8.39 *Overall Length: 6.33 *Overall Width: 1.26 *Toggle Lock Plus Lever: N *Weight: 2.95 lbs

Description:
*Vertical Hold Down Toggle Clamp Solid Base Type *High strength forged clamping arm for heavy-duty service *Hardened steel pivot pins and bushings provide long life *Black oxide finish *Large clearance under the clamping bar

Shipping Info:
*Actual Weight - 2.7000
