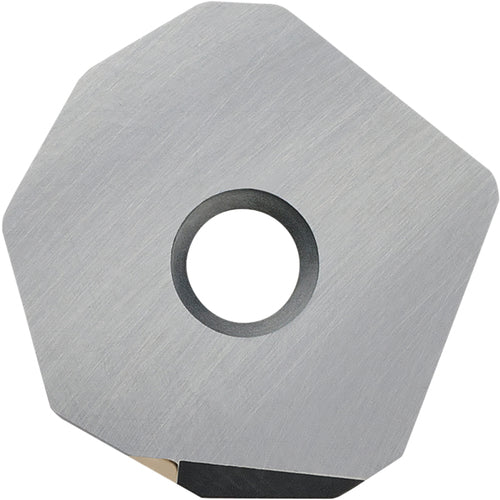

PNEG 1106XNTRT01015W KBN475 Grade CBN, Indexable Milling Insert
Item #: KY99TFB05311
Brand: Kyocera Precision Tools
Model #: TFB05311
| Product Specifications | |
|---|---|
| Applicable Material | Cast Iron |
| Clearance Angle Major (AN) | 0 Degrees |
| Application | Chamfering | Facing |
| Corner Chamfer Width (CHW) | 0.0669″ |
| Insert Length (INSL) | 0.711″ |
| Cutting Direction (HAND) | Right Hand |
| Insert Thickness (S) | 0.256″ |
| Chip Breaker Type | XNTR-W |
| Wiper Edge Length (BS) | 0.189″ |
| Series/List # | MFK |
| Grade | KBN475 |
| Cutting Edge Material | CBN |
| Shape | Pentagon |
| Coating Process | Uncoated |
| Insert Style | PNEG |
| Number of Cutting Edges | 2 |
| Insert Size | 1106 |
| Measurement Type | Inch |
