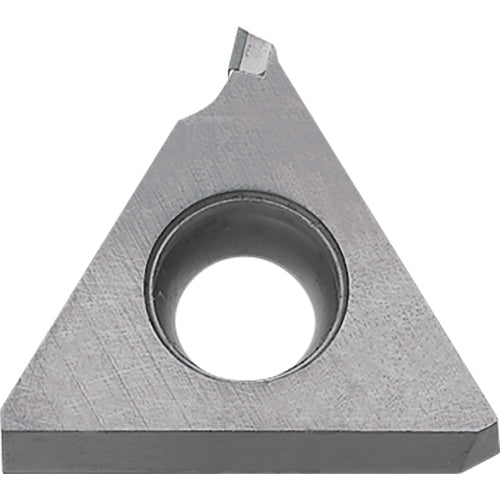

GBA 43L125020 KBN525 Grade CBN, Indexable Grooving Insert
Item #: KY99TBW21201
Brand: Kyocera Precision Tools
Model #: TBW21201
| Product Specifications | |
|---|---|
| Cutting Width (CW) | 1.25 mm |
| Applicable Material | Hard Materials |
| Corner Radius (RE) | 0.2 mm |
| Cutting Direction (HAND) | Left Hand |
| Cutting Depth Maximum (CDX) | 2 mm |
| Number of Cutting Edges | 1 |
| Insert Thickness (S) | 4.76 mm |
| Insert Style | GBA |
| Inscribed Circle Diameter (IC) | 12.7 mm |
| Number of Teeth | 1 |
| Fixing Hole Diameter (D1) | 5.5 mm |
| Mounting Style | Screw | Clamp |
| Insert Rake Angle (GAN) | Positive |
| Series/List # | GBA |
| Grade | KBN525 |
| Coating Process | Uncoated |
| Cutting Edge Material | CBN |
| Measurement Type | Metric |
| Application | External Grooving | Internal Grooving |
| Cutting Edge Length (L) | 1.9 mm |
