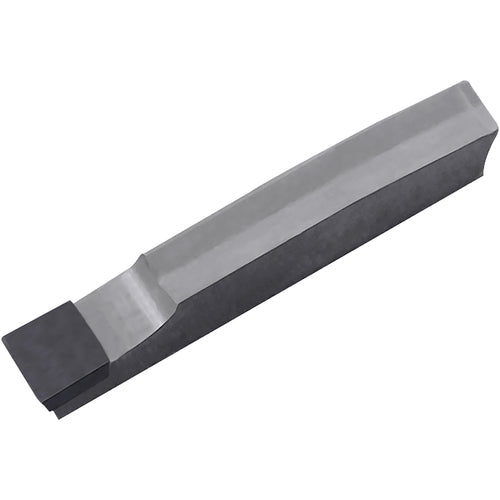

GMN 2 KBN525 Grade CBN, Indexable Grooving Insert
Item #: KY99TBW12495
Brand: Kyocera Precision Tools
Model #: TBW12495
| Product Specifications | |
|---|---|
| Cutting Width (CW) | 2 mm |
| Cutting Direction (HAND) | Neutral |
| Corner Radius (RE) | 0.2 mm |
| Number of Cutting Edges | 1 |
| Cutting Depth Maximum (CDX) | 17 mm |
| Insert Style | GMN |
| Insert Thickness (S) | 4.3 mm |
| Number of Teeth | 1 |
| Insert Length (INSL) | 20 mm |
| Mounting Style | Clamp |
| Grade | KBN525 |
| Series/List # | KGM |
| Cutting Edge Material | CBN |
| Coating Process | Uncoated |
| Application | External Deep Grooving | External Grooving |
| Measurement Type | Metric |
| Applicable Material | Hard Materials |
| Cutting Edge Length (L) | 2.9 mm |
