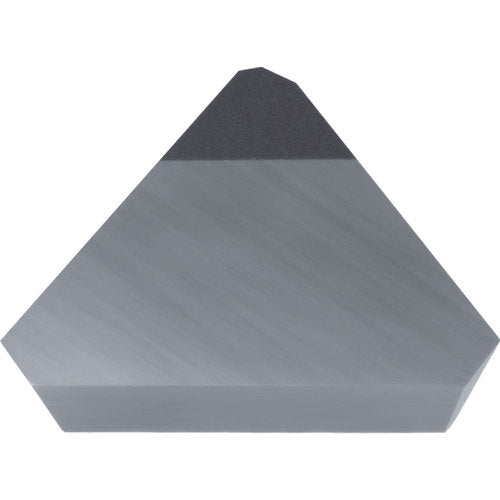

TEEN 32PTFR KPD001 Grade PCD, Indexable Milling Insert
Item #: KY99TBR04290
Brand: Kyocera Precision Tools
Model #: TBR04290
| Product Specifications | |
|---|---|
| Applicable Material | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium |
| Insert Size | 32 |
| Application | Facing | Shouldering | Slotting |
| Clearance Angle Major (AN) | 20 Degrees |
| Cutting Edge Length (L) | 0.185″ |
| Corner Chamfer Width (CHW) | 0.0236″ |
| Inscribed Circle Diameter (IC) | 3/8″ |
| Cutting Direction (HAND) | Right Hand |
| Insert Thickness (S) | 1/8″ |
| Chip Breaker Type | PTFR |
| Wiper Edge Length (BS) | 0.0551″ |
| Series/List # | MTES |
| Insert Included Angle (EPSR) | 60 Degrees |
| Cutting Edge Material | PCD |
| Grade | KPD001 |
| Coating Process | Uncoated |
| Shape | 60° Triangle |
| Number of Cutting Edges | 1 |
| Insert Style | TEEN |
| Measurement Type | Inch |
