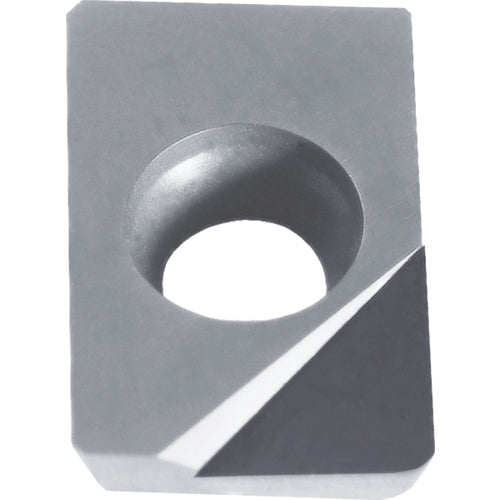

NDCW 3205FRX KPD001 Grade PCD, Indexable Milling Insert
Item #: KY99TBR03200
Brand: Kyocera Precision Tools
Model #: TBR03200
| Product Specifications | |
|---|---|
| Applicable Material | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium |
| Clearance Angle Major (AN) | 15 Degrees |
| Application | Facing | Shouldering | Slotting |
| Cutting Direction (HAND) | Right Hand |
| Cutting Edge Length (L) | 0.2244″ |
| Chip Breaker Type | FRX |
| Corner Radius (RE) | 0.008″ |
| Series/List # | DMC |
| Inscribed Circle Diameter (IC) | 3/8″ |
| Hole Diameter | 0.1732″ |
| Insert Thickness (S) | 1/8″ |
| Cutting Edge Material | PCD |
| Grade | KPD001 |
| Coating Process | Uncoated |
| Shape | Parallelogram |
| Number of Cutting Edges | 1 |
| Insert Style | NDCW |
| Measurement Type | Inch |
| Insert Size | 3205 |
