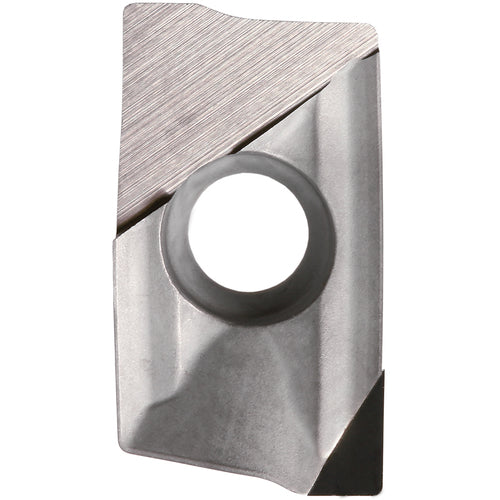

BDMT 11T302FR KPD230 Grade PCD, Indexable Milling Insert
Item #: KY99TBD00290
Brand: Kyocera Precision Tools
Model #: TBD00290
| Product Specifications | |
|---|---|
| Applicable Material | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium |
| Clearance Angle Major (AN) | 18 Degrees |
| Application | Facing | Helical Milling | Shouldering | Slotting |
| Cutting Direction (HAND) | Right Hand |
| Cutting Edge Length (L) | 0.1417″ |
| Chip Breaker Type | FR |
| Corner Radius (RE) | 0.008″ |
| Series/List # | MEC |
| Insert Width (W1) | 0.2638″ |
| Hole Diameter | 0.1102″ |
| Insert Thickness (S) | 0.15″ |
| Cutting Edge Material | PCD |
| Grade | KPD230 |
| Coating Process | Uncoated |
| Shape | Parallelogram |
| Number of Cutting Edges | 1 |
| Insert Style | BDMT |
| Measurement Type | Inch |
| Insert Size | 11T302 |
