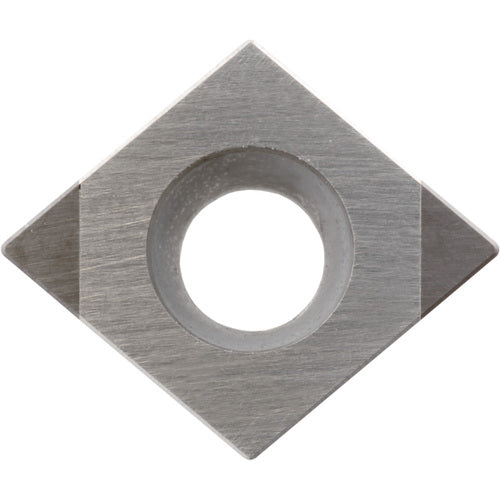

CCMW 2151 ME KBN35M, 1/64″ Corner Radius, 3/32″ Thick, 1/4″ Inscribed Circle, MEGACOAT, Diamond, Turning Indexable Insert
Item #: KY998828784
Brand: Kyocera Precision Tools
Model #: TBA01192
| Product Specifications | |
|---|---|
| Applicable Material | Hard Steel |
| Coating | MEGACOAT |
| Application | External Turning | Facing | Boring | Internal Facing |
| Grade | KBN35M |
| Insert Style | CCMW |
| Fixing Hole Diameter (D1) | 0.1102″ |
| Corner Radius (RE) | 1/64″ |
| Clearance Angle Major (AN) | 7 Degrees |
| Insert Size | 2151 |
| Number of Cutting Edges | 2 |
| Insert Thickness (S) | 3/32″ |
| Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 1/4″ |
| Chip Breaker Type | ME |
| Cutting Edge Material | Honeycomb CBN |
| Shape | Diamond |
