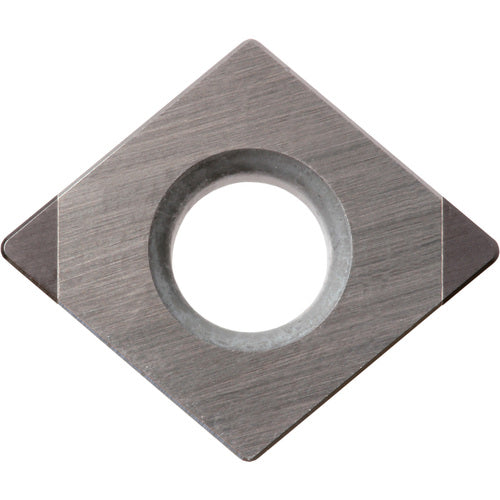

CPGB 25151 MET KBN25M, 1/64″ Corner Radius, 3/32″ Thick, 5/16″ Inscribed Circle, MEGACOAT, Diamond, Turning Indexable Insert
Item #: KY998826792
Brand: Kyocera Precision Tools
Model #: TBZ01810
| Product Specifications | |
|---|---|
| Applicable Material | Hard Steel |
| Coating | MEGACOAT |
| Application | Boring | Internal Facing |
| Grade | KBN25M |
| Insert Style | CPGB |
| Fixing Hole Diameter (D1) | 0.1378″ |
| Corner Radius (RE) | 1/64″ |
| Clearance Angle Major (AN) | 11 Degrees |
| Insert Size | 25151 |
| Number of Cutting Edges | 2 |
| Insert Thickness (S) | 3/32″ |
| Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 5/16″ |
| Chip Breaker Type | MET |
| Cutting Edge Material | CBN |
| Shape | Diamond |
