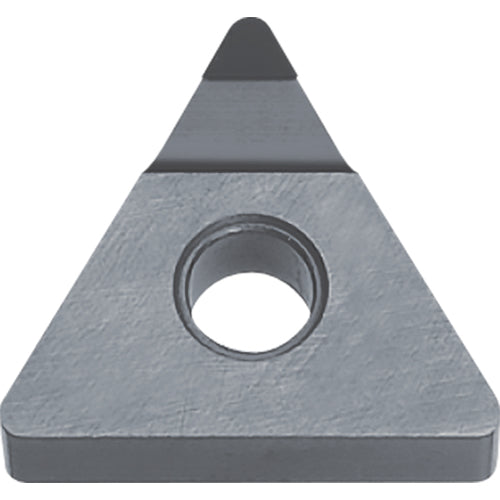

TNMM 3305MSE KPD001 INSRT
Item #: KY998814794
Brand: Kyocera Precision Tools
Model #: TBR04605
| Product Specifications | |
|---|---|
| Applicable Material | Aluminum / Non-Ferrous Materials |
| Grade | KPD001 |
| Application | External Turning | Facing | Copying | Chamfering | Boring |
| Fixing Hole Diameter (D1) | 3.81 mm |
| Insert Style | TNMM |
| Clearance Angle Major (AN) | 0 Degrees |
| Corner Radius (RE) | 0.2 mm |
| Number of Cutting Edges | 1 |
| Insert Size | 3305 |
| Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 4.76 mm |
| Chip Breaker Type | MSE |
| Inscribed Circle Diameter (IC) | 9.53 mm |
| Shape | Triangle |
| Cutting Edge Material | PCD |
