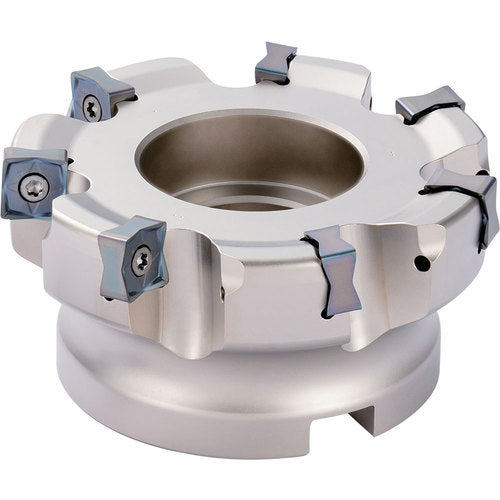

MFSN 88050R4TMG Metric Bore Diameter, 88 Degree Face Mill
Item #: KY96THN08416
Brand: Kyocera Precision Tools
Model #: THN08416
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 52 mm |
| Master Insert Identification (MIID) | SNMU130508EN-GM | SNMU130508EN-SM | SNMU130508EN-GH |
| Cutting Diameter (DC) | 52 mm |
| Coolant Supply Property (CSP) | External |
| Cutting Diameter Maximum (DCX) | 52 mm |
| Body Material | Steel |
| Cutting Item Count (CICT) | 4 |
| Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 5 mm |
| Application | Facing |
| Connection Diameter Machine Side (DCONMS) | 22 mm |
| Measurement Type | Metric |
| Overall Length (OAL) | 40 mm |
| Tool Cutting Edge Angle (KAPR) | 88 Degrees |
| Hub Diameter (DHUB) | 48 mm |
| Series/List # | MFSN |
