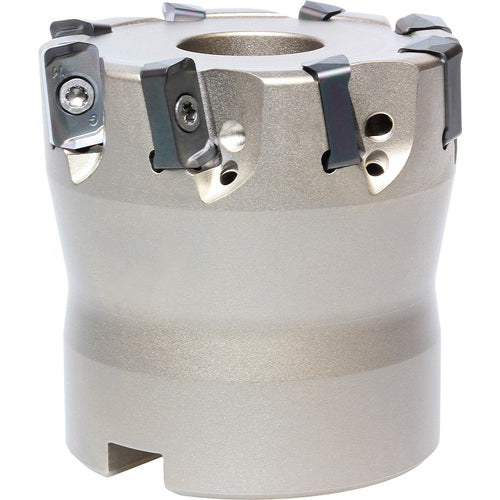

MFH 040R035TM, MFH-RAPTOR, Mini 40.00mm Cutting Diameter, High-Feed Face Mill
Item #: KY96THN08326
Brand: Kyocera Precision Tools
Model #: THN08326
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 40 mm |
| Ramping Angle Maximum (RMPX) | 0.5 Degrees |
| Cutting Diameter (DC) | 40 mm |
| Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter Maximum (DCX) | 40 mm |
| Body Material | Steel |
| Cutting Item Count (CICT) | 5 |
| Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 1 mm |
| Application | Facing | Helical Milling | Plunging | Ramping | Shouldering | Slotting |
| Connection Diameter Machine Side (DCONMS) | 16 mm |
| Measurement Type | Metric |
| Overall Length (OAL) | 40 mm |
| Tool Cutting Edge Angle (KAPR) | 10 Degrees |
| Hub Diameter (DHUB) | 38 mm |
| Series/List # | MFHI |
| Master Insert Identification (MIID) | LOGU03 |
