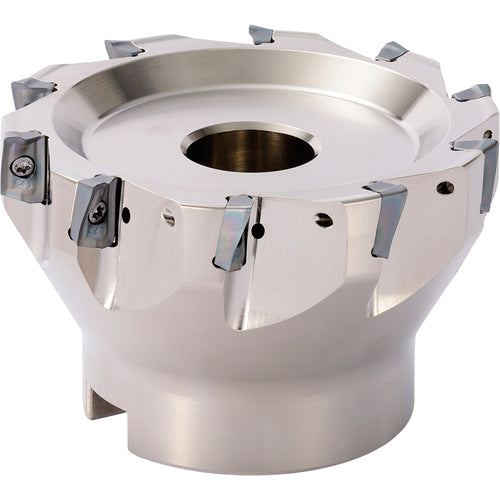

MEC 032R115TM Metric Bore Diameter, 90 Degree Face Mill
Item #: KY96THN08262
Brand: Kyocera Precision Tools
Model #: THN08262
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 32 mm |
| Master Insert Identification (MIID) | BDMT11T3ER-JT | BDMT11T3ER-JS | BDGT11T3FR-JA BDGT11T3FR | BDMT11T3FR |
| Cutting Diameter (DC) | 32 mm |
| Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter Maximum (DCX) | 32 mm |
| Body Material | Steel |
| Cutting Item Count (CICT) | 5 |
| Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 10 mm |
| Application | Facing | Helical Milling | Plunging | Shouldering | Slotting |
| Connection Diameter Machine Side (DCONMS) | 16 mm |
| Measurement Type | Metric |
| Overall Length (OAL) | 35 mm |
| Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Hub Diameter (DHUB) | 30 mm |
| Series/List # | MEC |
