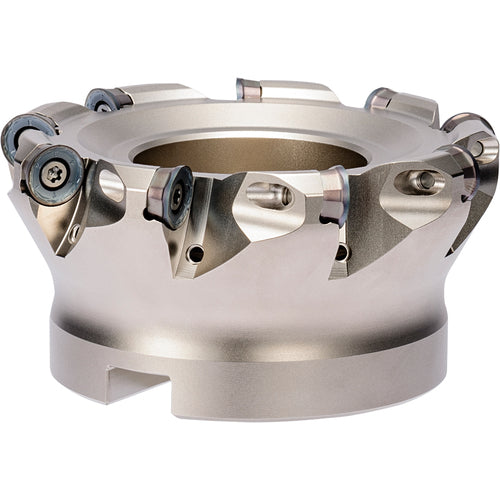

MRX 040R124TM RAD-6 Series, Radius Face Mill
Item #: KY96THN07210
Brand: Kyocera Precision Tools
Model #: THN07210
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 40 mm |
| Master Insert Identification (MIID) | RPMT1204M0ER-GM | RPGT1204M0ER-GM | RPGT1204M0ER-SM | RPMT1204M0EN-GH | RPMW1204M0TN |
| Cutting Diameter (DC) | 40 mm |
| Ramping Angle Maximum (RMPX) | 5 Degrees |
| Cutting Diameter Maximum (DCX) | 40 mm |
| Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 4 |
| Body Material | Steel |
| Depth of Cut Maximum (APMX) | 6 mm |
| Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 16 mm |
| Application | Facing | Pocketing | Profiling | Ramping | Shouldering | Slotting |
| Overall Length (OAL) | 40 mm |
| Measurement Type | Metric |
| Hub Diameter (DHUB) | 38 mm |
| Series/List # | MRX |
