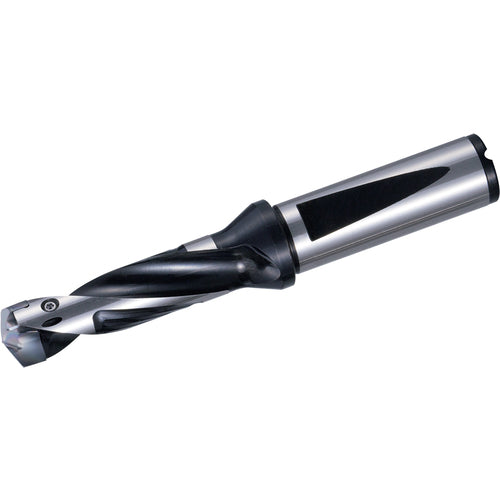

SF0750DRA160M3, DRA Magic Drill 0.6299-0.6689″ Cutting Diameter, 3xD, Replaceable Tip Drill
Item #: KY96THD11200
Brand: Kyocera Precision Tools
Model #: THD11200
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 0.6299″ - 0.6689″ |
| Overall Length (OAL) | 4.961″ |
| Usable Length (LU) | 2.0079″ |
| Shank Length (LS) | 1.9689″ |
| Length Group | 3D |
| Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | Flange |
| Cutting Direction (HAND) | Right Hand |
| Application | Drilling |
| Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 3/4″ |
| Style | SF DRA |
| Insert Seat Size Code (SSC) | 160 |
| Master Insert Identification (MIID) | DA1600M- ~ DA1690M- |
| Cutting Diameter Minimum (DCN) | 0.6299″ |
| Series/List # | DRA |
| Cutting Diameter Maximum (DCX) | 0.6689″ |
| Body Material | Steel |
