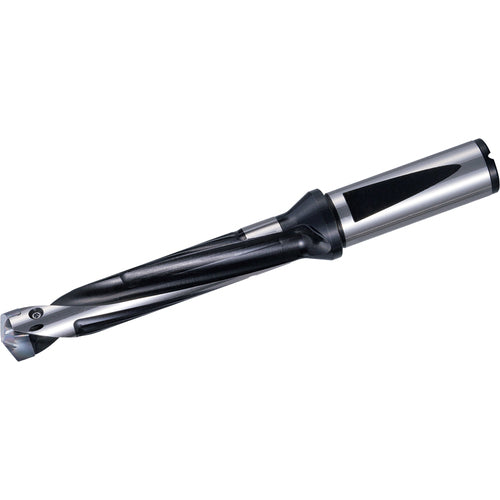

SF12DRA095M5, DRA Magic Drill 9.50-9.99mm Cutting Diameter, 5xD, Replaceable Tip Drill
Item #: KY96THD08596
Brand: Kyocera Precision Tools
Model #: THD08596
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 9.5 mm - 9.99 mm |
| Overall Length (OAL) | 110 mm |
| Usable Length (LU) | 50 mm |
| Shank Length (LS) | 45 mm |
| Length Group | 5D |
| Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | Flange |
| Cutting Direction (HAND) | Right Hand |
| Application | Drilling |
| Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 12 mm |
| Style | SF DRA |
| Insert Seat Size Code (SSC) | 95 |
| Master Insert Identification (MIID) | DA0950M- ~ DA0990M- |
| Cutting Diameter Minimum (DCN) | 9.5 mm |
| Series/List # | DRA |
| Cutting Diameter Maximum (DCX) | 9.99 mm |
| Body Material | Steel |
