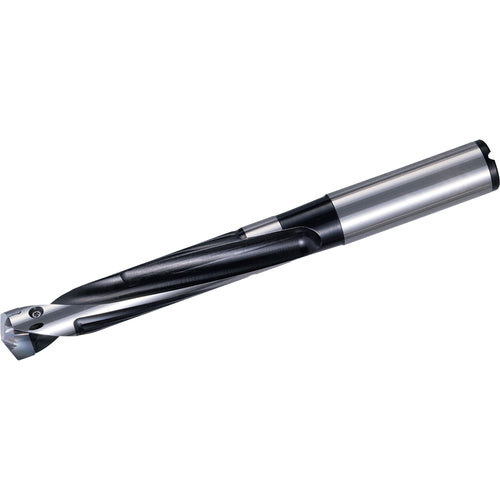

SS16DRA140M5, DRA Magic Drill 14.00-14.49mm Cutting Diameter, 5xD, Replaceable Tip Drill
Item #: KY96THD08141
Brand: Kyocera Precision Tools
Model #: THD08141
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 14 mm - 14.49 mm |
| Overall Length (OAL) | 141 mm |
| Usable Length (LU) | 72.5 mm |
| Shank Length (LS) | 48 mm |
| Length Group | 5D |
| Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | Round |
| Cutting Direction (HAND) | Right Hand |
| Application | Drilling |
| Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 16 mm |
| Style | SS DRA |
| Insert Seat Size Code (SSC) | 140 |
| Master Insert Identification (MIID) | DA1400M- ~ DA1440M- |
| Cutting Diameter Minimum (DCN) | 14 mm |
| Series/List # | DRA |
| Cutting Diameter Maximum (DCX) | 14.49 mm |
| Body Material | Steel |
