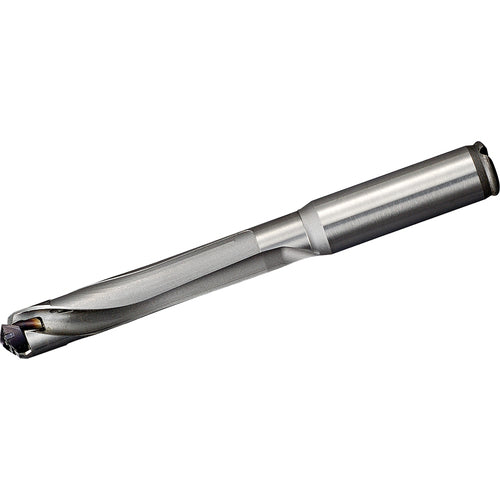

SS10DRC085M3, DRC Magic Drill 8.50-8.99mm Cutting Diameter, 3xD, Replaceable Tip Drill
Item #: KY96THD07085
Brand: Kyocera Precision Tools
Model #: THD07085
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 8.5 mm - 8.99 mm |
| Overall Length (OAL) | 81 mm |
| Usable Length (LU) | 27 mm |
| Shank Length (LS) | 40 mm |
| Length Group | 3D |
| Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | Round |
| Cutting Direction (HAND) | Right Hand |
| Application | Drilling |
| Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 10 mm |
| Style | SS DRC |
| Insert Seat Size Code (SSC) | 80 |
| Master Insert Identification (MIID) | DC0850M-SC ~ DC0890M-SC |
| Cutting Diameter Minimum (DCN) | 8.5 mm |
| Series/List # | DRC |
| Cutting Diameter Maximum (DCX) | 8.99 mm |
| Body Material | Steel |
