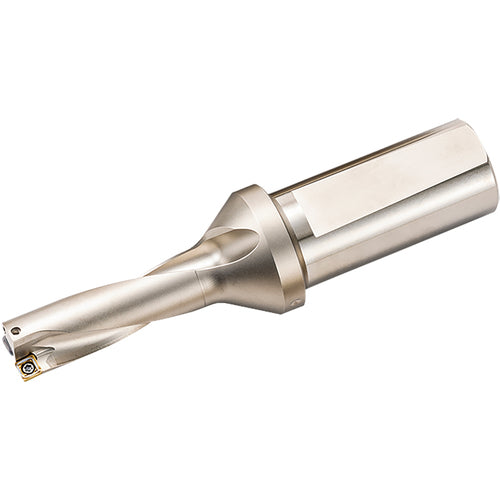

0.6560 3XD INDEXABLE DRL
Item #: KY968859009
Brand: Kyocera Precision Tools
Model #: THD11712
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 0.656″ |
| Cutting Direction (HAND) | Right Hand |
| Usable Length (LU) | 1.968″ |
| Cutting Item Count (CICT) | 2 |
| Application | Drilling |
| Cutting Diameter Minimum (DCN) | 0.656″ |
| Connection Diameter Machine Side (DCONMS) | 3/4″ |
| Cutting Diameter Maximum (DCX) | 0.656″ |
| Shank Type | Weldon |
| Measurement Type | Inch |
| Tool Type | Indexable Drill |
| Length Group | 3xD |
| Overall Length (OAL) | 4.586″ |
| Master Insert Identification (MIID) | SCMT050205-GH-E | SCMT050205-GM-E | SCMT050205-SM-E | SCMT050205-XM-E | SCMT050210-GH-I | SCMT050210-GM-I | SCMT050210-SM-I | SCMT050210-XM-I |
| Coolant Supply Property (CSP) | Yes |
| Decimal Equivalent | 0.656″ |
