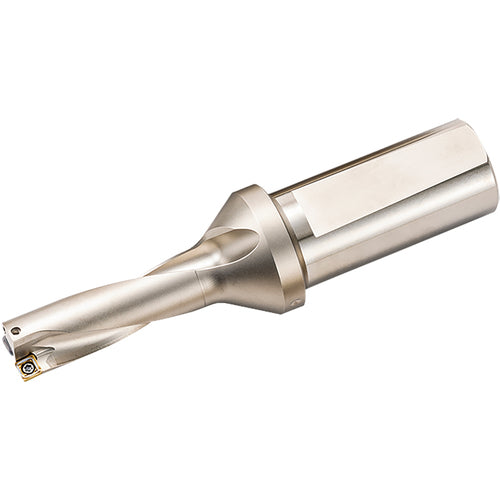

14.00MM 3XD INDEXABLE DRL
Item #: KY968858518
Brand: Kyocera Precision Tools
Model #: THD11664
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 14 mm |
| Cutting Direction (HAND) | Right Hand |
| Usable Length (LU) | 42 mm |
| Cutting Item Count (CICT) | 2 |
| Application | Drilling |
| Cutting Diameter Minimum (DCN) | 14 mm |
| Connection Diameter Machine Side (DCONMS) | 20 mm |
| Cutting Diameter Maximum (DCX) | 14 mm |
| Shank Type | Weldon |
| Measurement Type | Metric |
| Tool Type | Indexable Drill |
| Length Group | 3xD |
| Overall Length (OAL) | 106 mm |
| Master Insert Identification (MIID) | SCMT040205-GH-E | SCMT040205-GM-E | SCMT040205-SM-E | SCMT040205-XM-E | SCMT040209-GH-I | SCMT040209-GM-I | SCMT040209-SM-I | SCMT040209-XM-I |
| Coolant Supply Property (CSP) | Yes |
| Decimal Equivalent | 0.5512″ |
