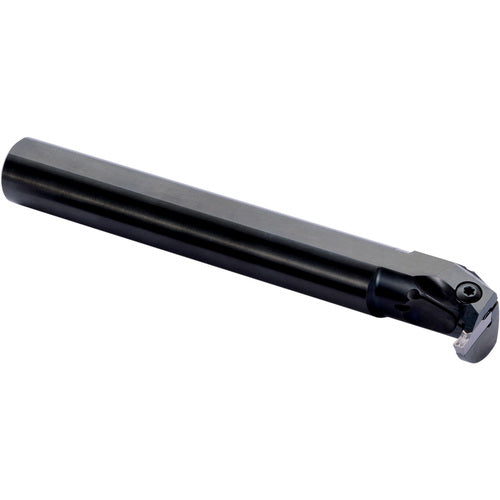

KGDIL 2016B3 INT GROOVE
Item #: KY968845490
Brand: Kyocera Precision Tools
Model #: THC14536
| Product Specifications | |
|---|---|
| Cutting Width Minimum (CWN) | 3 mm |
| Cutting Direction (HAND) | Left Hand |
| Cutting Width Maximum (CWX) | 3 mm |
| Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Depth Maximum (CDX) | 5.5 mm |
| Application | Grooving |
| Shank Height (H) | 15 mm |
| Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 20 mm |
| Series/List # | KGDI |
| Head Length (LH) | 25 mm |
| Measurement Type | Metric |
| Overall Length (OAL) | 150 mm |
| Cutting Position | Internal |
| Connection Diameter Machine Side (DCONMS) | 16 mm |
