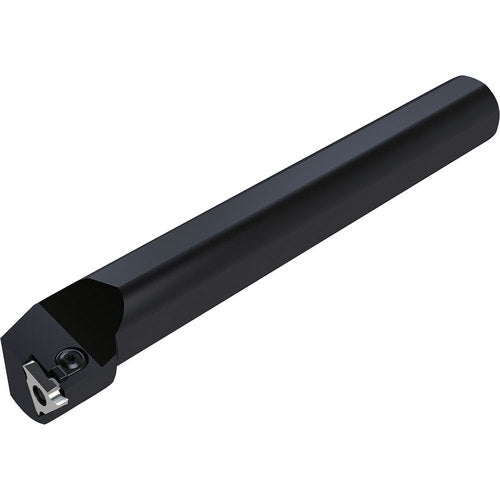

KIGBAL 204 INT GROOV HLDR
Item #: KY968834809
Brand: Kyocera Precision Tools
Model #: THC89052
| Product Specifications | |
|---|---|
| Cutting Width Minimum (CWN) | 0.031″ |
| Cutting Direction (HAND) | Left Hand |
| Cutting Width Maximum (CWX) | 0.189″ |
| Coolant Supply Property (CSP) | External |
| Cutting Depth Maximum (CDX) | 0.1969″ |
| Application | Large Diameter Shallow Grooving |
| Shank Height (H) | 1.18″ |
| Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 1.57″ |
| Series/List # | KIGBA |
| Head Length (LH) | 1.1811″ |
| Measurement Type | Inch |
| Overall Length (OAL) | 10″ |
| Cutting Position | Internal |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ |
