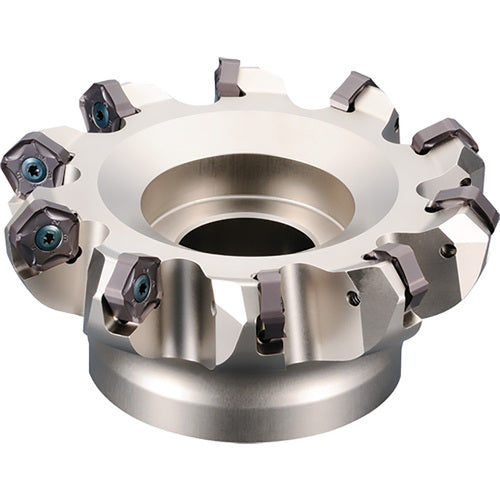

MFPN 45063R5TM 63.00MM
Item #: KY968832373
Brand: Kyocera Precision Tools
Model #: THN04490
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 76 mm |
| Coolant Supply Property (CSP) | External |
| Cutting Diameter (DC) | 63 mm |
| Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 76 mm |
| Cutting Direction (HAND) | Right Hand |
| Cutting Item Count (CICT) | 5 |
| Application | Facing | Chamfering |
| Depth of Cut Maximum (APMX) | 6 mm |
| Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 22 mm |
| Tool Cutting Edge Angle (KAPR) | 45 Degrees |
| Overall Length (OAL) | 40 mm |
| Tool Type | Face Mill |
| Hub Diameter (DHUB) | 47 mm |
| Series/List # | MFPN |
| Master Insert Identification (MIID) | PNMU1205… | PNEU1205… |
