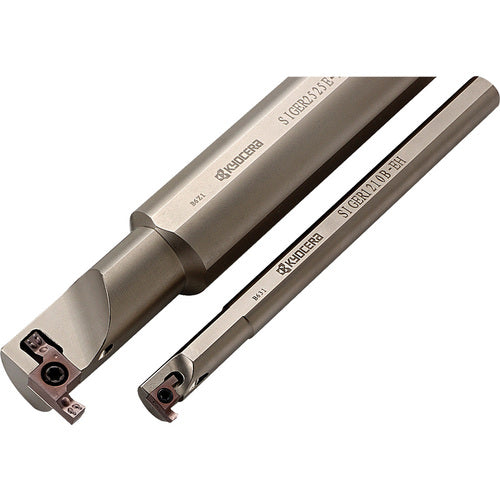

SIGER 0810CEH INT GROOVE
Item #: KY968825471
Brand: Kyocera Precision Tools
Model #: THC89532
| Product Specifications | |
|---|---|
| Cutting Width Minimum (CWN) | 0.0394″ |
| Cutting Direction (HAND) | Right Hand |
| Cutting Width Maximum (CWX) | 0.1378″ |
| Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Depth Maximum (CDX) | 0.0984″ |
| Application | Grooving |
| Shank Height (H) | 0.46″ |
| Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 0.63″ |
| Series/List # | SIGE |
| Head Length (LH) | 0.788″ |
| Measurement Type | Inch |
| Overall Length (OAL) | 5.9″ |
| Cutting Position | Internal |
| Connection Diameter Machine Side (DCONMS) | 1/2″ |
