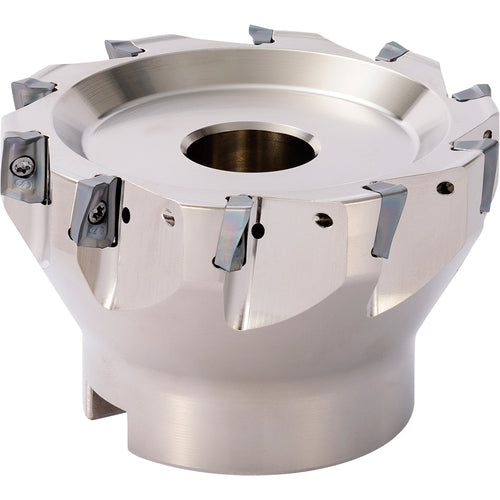

MEC 2000R174T Inch Bore Diameter, 90 Degree Face Mill
Item #: KY968819526
Brand: Kyocera Precision Tools
Model #: 8819526
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 2″ |
| Master Insert Identification (MIID) | BDMT1704ER-JT | BDMT1704ER-JS | BDGT1704FR-JA | BDMT1704FR |
| Cutting Diameter (DC) | 2″ |
| Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter Maximum (DCX) | 2″ |
| Body Material | Steel |
| Cutting Item Count (CICT) | 4 |
| Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.6181″ |
| Application | Facing | Helical Milling | Plunging | Shouldering | Slotting |
| Connection Diameter Machine Side (DCONMS) | 3/4″ |
| Measurement Type | Inch |
| Overall Length (OAL) | 1.5748″ |
| Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Hub Diameter (DHUB) | 1.6063″ |
| Series/List # | MEC |
