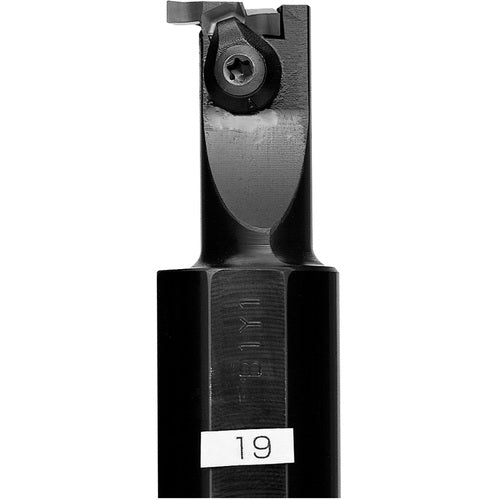

GIVR 14121SE INT GROOV
Item #: KY968806281
Brand: Kyocera Precision Tools
Model #: THC04746
| Product Specifications | |
|---|---|
| Cutting Width Minimum (CWN) | 1 mm |
| Cutting Direction (HAND) | Right Hand |
| Cutting Width Maximum (CWX) | 3.4 mm |
| Coolant Supply Property (CSP) | External |
| Cutting Depth Maximum (CDX) | 2.3 mm |
| Application | Small Diameter Grooving |
| Shank Height (H) | 11.4 mm |
| Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 14 mm |
| Series/List # | GIV |
| Head Length (LH) | 18 mm |
| Measurement Type | Metric |
| Overall Length (OAL) | 150 mm |
| Cutting Position | Internal |
| Connection Diameter Machine Side (DCONMS) | 12 mm |
