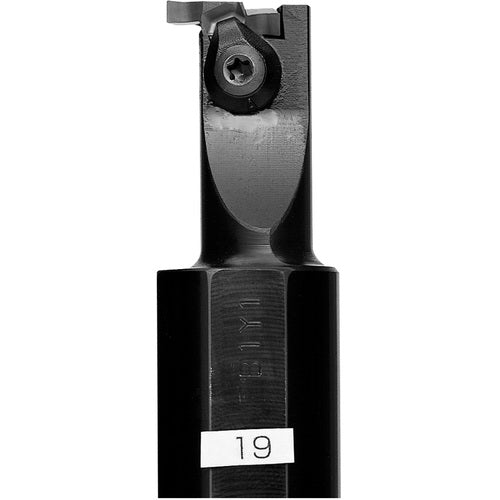

SIGIVR 2021 INT GROOVE
Item #: KY968802467
Brand: Kyocera Precision Tools
Model #: 8802467
| Product Specifications | |
|---|---|
| Cutting Width Minimum (CWN) | 0.125″ |
| Cutting Direction (HAND) | Right Hand |
| Cutting Width Maximum (CWX) | 0.187″ |
| Coolant Supply Property (CSP) | External |
| Cutting Depth Maximum (CDX) | 0.1772″ |
| Application | Small Diameter Grooving |
| Shank Height (H) | 1.17″ |
| Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 0.9843″ |
| Series/List # | GIV |
| Head Length (LH) | 1.7″ |
| Measurement Type | Inch |
| Overall Length (OAL) | 7-7/8″ |
| Cutting Position | Internal |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ |
