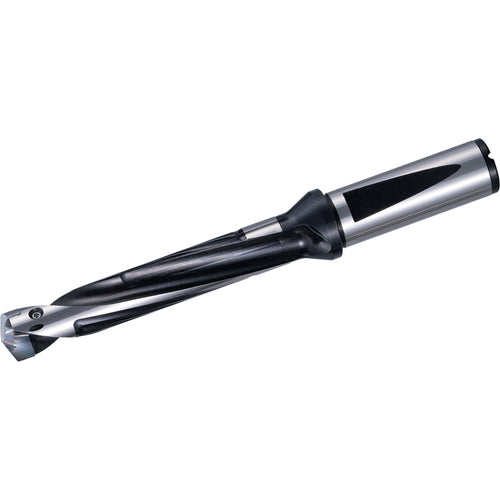

SF0500DRA080M5 5XD REPL
Item #: KY968607426
Brand: Kyocera Precision Tools
Model #: THD11220
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 0.3126″ - 0.3343″ |
| Overall Length (OAL) | 3.976″ |
| Usable Length (LU) | 1.6728″ |
| Shank Length (LS) | 1.7721″ |
| Length Group | 5D |
| Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | Flange |
| Cutting Direction (HAND) | Right Hand |
| Application | Drilling |
| Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1/2″ |
| Style | SF DRA |
| Insert Seat Size Code (SSC) | 80 |
| Master Insert Identification (MIID) | DA0794M- ~ DA0840M- |
| Cutting Diameter Minimum (DCN) | 0.3126″ |
| Series/List # | DRA |
| Cutting Diameter Maximum (DCX) | 0.3343″ |
| Body Material | Steel |
