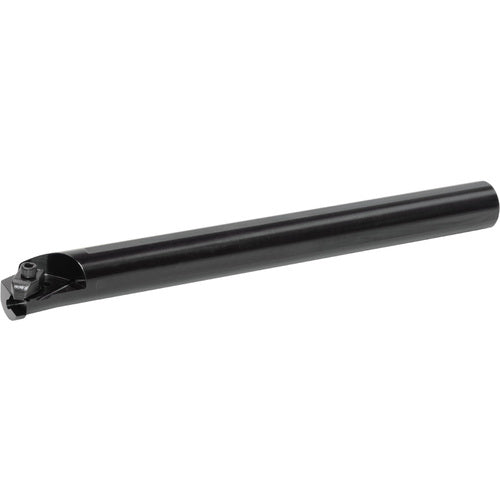

A28U-KKCL4 INT GROOV HLDR
Item #: KY968604025
Brand: Kyocera Precision Tools
Model #: THT89098
| Product Specifications | |
|---|---|
| Cutting Width Minimum (CWN) | 0.1252″ |
| Cutting Direction (HAND) | Left Hand |
| Cutting Width Maximum (CWX) | 0.25″ |
| Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Depth Maximum (CDX) | 0.0098″ |
| Application | Large Diameter Shallow Grooving |
| Shank Height (H) | 1.593″ |
| Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 2-1/2″ |
| Series/List # | Cera-Notch |
| Head Length (LH) | 1-3/4″ |
| Measurement Type | Inch |
| Overall Length (OAL) | 14″ |
| Cutting Position | Internal |
| Connection Diameter Machine Side (DCONMS) | 1-3/4″ |
