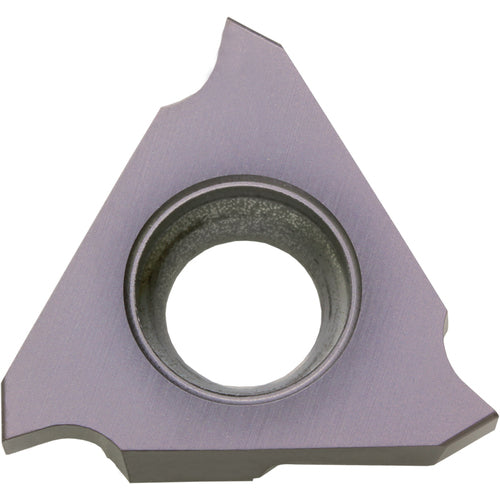

GBA 32L078N PV7040 INSERT
Item #: KY928837006
Brand: Kyocera Precision Tools
Model #: TJB89011
| Product Specifications | |
|---|---|
| Cutting Width (CW) | 0.078″ |
| Cutting Direction (HAND) | Left Hand |
| Corner Radius (RE) | 0.0079″ |
| Chip Breaker Type | N |
| Cutting Depth Maximum (CDX) | 0.0984″ |
| Insert Style | GBA |
| Insert Thickness (S) | 1/8″ |
| Insert Seat Size Code (SSC) | 32 |
| Inscribed Circle Diameter (IC) | 3/8″ |
| Number of Teeth | 3 |
| Fixing Hole Diameter (D1) | 0.1732″ |
| Mounting Style | Clamp |
| Coating | TiC/TiN (MEGACOAT) |
| Series/List # | GBA |
| Grade | PV7040 |
| Coating Process | PVD |
| Cutting Edge Material | Cermet |
| Measurement Type | Inch |
| Applicable Material | Steel |
